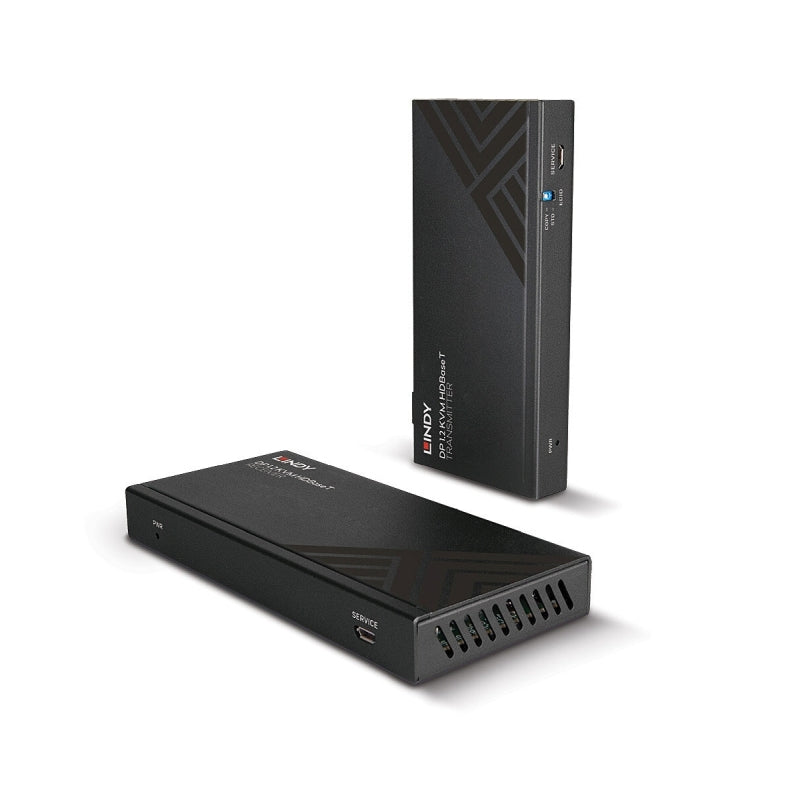

LINDY 150m Cat6 KVM Ext

150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender

Specifications:

• AV Interface: DisplayPort
• Interface Standard: DisplayPort 1.2, USB 1.1
• Supported Bandwidth: 21.6Gbps
• Maximum Distance: 150m
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass-Through: Dip Switch with copy function
• Supported Audio: Pass-Through
• Separate Audio Ports: -
• IR Support: 20 - 60KHz
• CEC Support: -
• Serial Interface: RS-232 Pass Through
• Transmission Protocol: HDBaseT
• Transmission Medium: Cat.6
• Chipset: VS010-A0
• Special Features: Bi-directional IR, RS-232 and PoC
• Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
• Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
• Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
• Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
• Bi-directional Ports: RS-232 3-Pin Terminal Block
• Power: 5.5/2.1mm
• Dimensions: 140x65x18mm each unit
• Housing Material: Metal
• Net Weight: 0.8kg
• Operating Temperature: 0C - 40C
• Storage Temperature: -20C - 60C
• Humidity: 20 - 90% RH (non-condensing)
• Power Requirements: 24VDC 1A
• Colour: Black
• Packaging Type: Carton Box
• Packaging Dimensions: 245x75x185mm
• Gross Weight: 1.02kg
• Warranty: 2-year
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Features:

• Extends DisplayPort signals up to 150m distances over Cat.6 network cable via HDBaseT technology
• Supports resolutions up to 4K@60Hz 4:4:4
• USB ports for mouse and keyboard connection
• Bi-directional IR & RS-232 control and PoC (Power over Cable) function
• 2-year warranty
