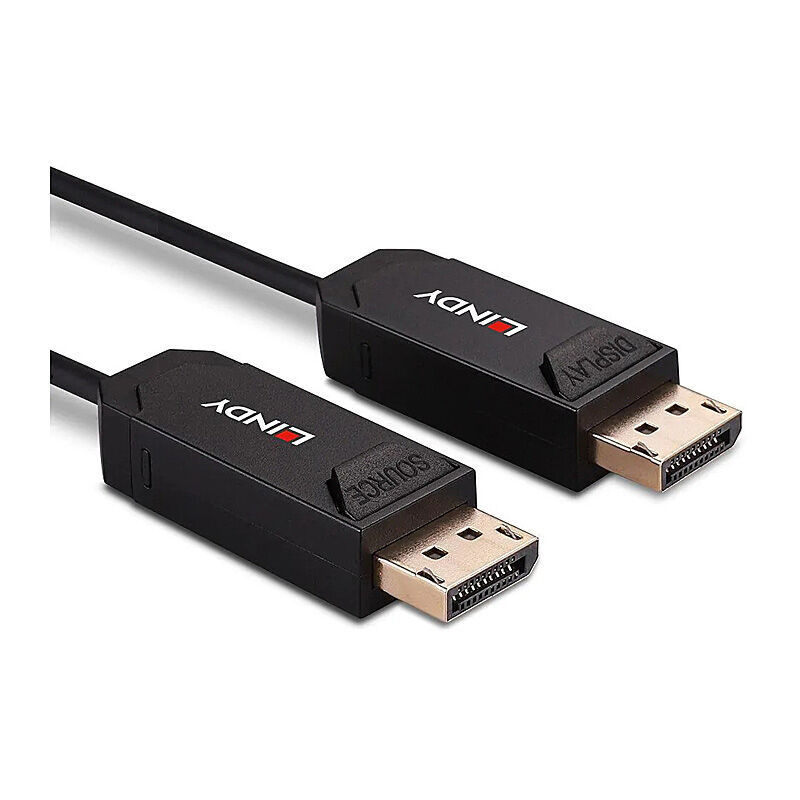

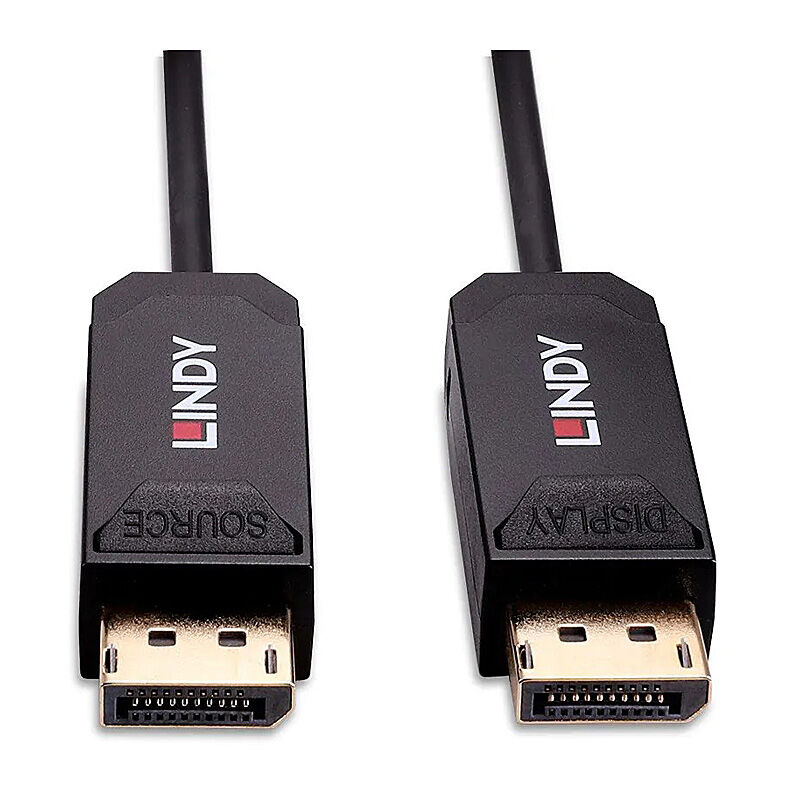

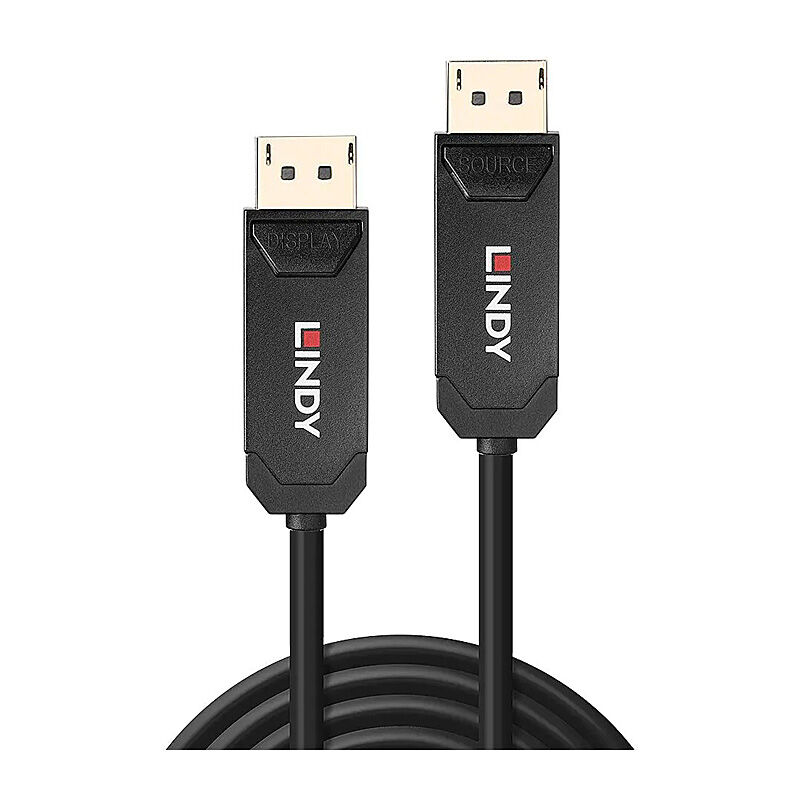

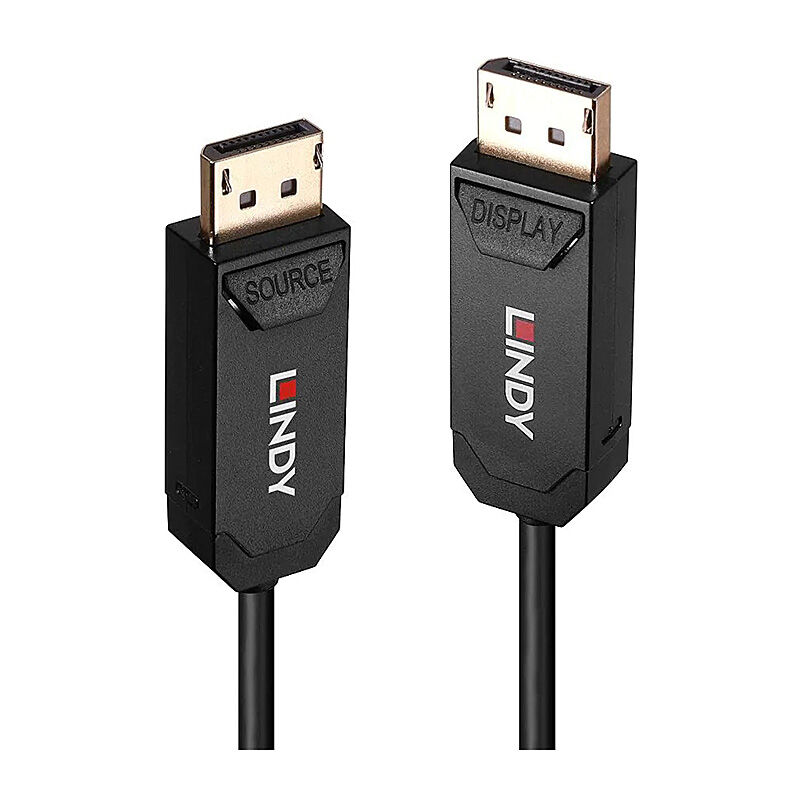

Lindy 10m Fibre Optic DP Cable

Lindy 10m Fibre Optic Hybrid DisplayPort 2.0 UHBR10 Cable

Features

• Combines copper and fibre optic cable for a hybrid, long distance DisplayPort connectivity solution
• Supports resolutions up to 4K@144Hz, 8K@60Hz
• DP2.0 standard with UHBR10 support, 40Gbps bandwidth (4 lanes, 10Gbps per channel)
• Flexible and robust cable structure for any kind of installations
• 2-Year Warranty

Specifications

Connectors

• Connector A: DisplayPort (Male)
• Connector B: DisplayPort (Male)
• Housing Material: PVC
• Connector Plating: Gold Plated
• Pin Construction: Gold Plated
• Pin Plating: Gold Plated
• Dimensions (approx.) WxDxH: DP Connector: 19.8x47.8x12mm (0.78x1.88x0.47in)

Cable Construction

• Length: 10m (32.81ft)
• Standard: DisplayPort 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.0mm (0.16in)
• Jacket Material: PVC
• Conductor Material: Fiber and Copper
• Conductor Gauge: 24AWG
• Shielding: -

Specifications

• Supported Bandwidth: 40Gbps
• Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 3840x2160@144Hz 4:4:4 10bit
• Nominal Attenuation: ≤10dB/km@850nm, ≤8dB/km@1300nm
• Minimum Bend Radius: 50mm (1.97in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Carton Box
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
