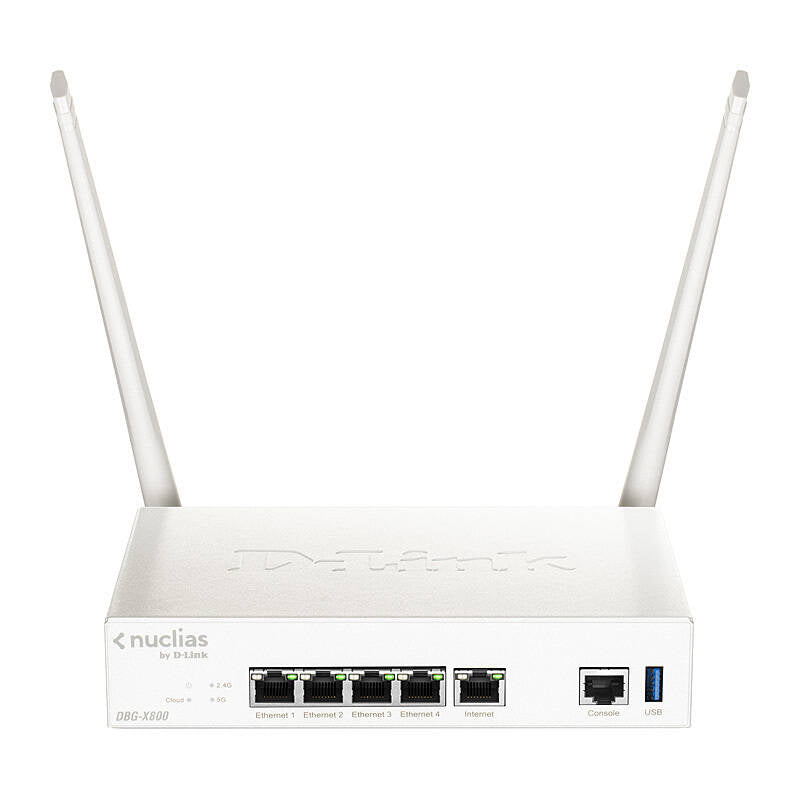

D-Link DBG-X800 SD-WAN Gateway

D-Link Nuclias Cloud-Managed SD-WAN Security Gateway for Branch Office

Features:

• End-to-End Encryption
• Social Login for Wi-Fi
• Searchable Event Log and Change Log
• Auto Channel Management
• Bandwidth Optimization
• Authentication via Captive Portal, 802.1x and RADIUS

Specification:

• General
  Hardware Version: A1
  Ethernet Interface: 4 x 10/100/1000 Mbps LAN ports. 1 x 10/100/1000 Mbps WAN port.
  Wireless Interface: 2x2 802.11ax dual-band wireless
  USB Port: 1 x USB 3.0 port
  Console Port: 1 x RJ-45 port
• Performance
  Firewall Throughput: 900 Mbps
  IPSec VPN Throughput: 130 Mbps
  Max Concurrent Sessions: 50,000
• Internet Connection Type
  Static/Dynamic IP: Yes
  PPPoE/DS-Lite: Yes
  IPoE: Yes
• Security System
  Dynamic DNS: Yes
  NAT/Port Forwarding: Yes
  Web Content Filtering: Static URL, Keywords, Dynamic WCF
  Intrusion Prevention System (IPS): Yes
  Authentication: Internal User Database, RADIUS
  Application Control: Well-Known Applications
  Firewall Policies: 999
• Routing
  Static Route: Yes
  Dynamic Route: Yes
  Policy Route: Yes
  Inter-VLAN Route: Yes
• Networking
  DHCP Server/Client: Yes
  DHCP Relay: Yes
  IEEE 802.11q VLAN: 200
  IP/MAC Binding: Yes
  WAN Failover: N/A
  Networking: N/A
  DHCP IP Reserve: Yes
  IP Multicast: Yes
  IPv6: Yes
  Outbound Load Balancing: N/A
• Wireless
  Multiple Service Set Identifier (SSID): 16
  SSID to VLAN Mapping: Yes
  Bridge Mode: Yes
  Wireless Security: WPA/WPA2/WPA3
• Virtual Private Network (VPN)
  IPSec Tunnels: 50
  PPTP/L2TP Tunnels: 100
  OpenVPN Tunnels: 15Encryption Methods: DES, 3DES, AES, Twofish, Blowfish, CAST-128
  IPSec/PPTP/L2TP/OpenVPN Server: Yes
  IPSec NAT Traversal: Yes
  Dead Peer Detection: Yes
  IP Encapsulating Security Payload (ESP): Yes
  IP Authentication Header (AH): Yes
  VPN Tunnel Keep Alive: Yes
  QuickVPN: Site to Site / Hub and Spoke
• Bandwidth Management (Available in Q3 2023)
  Maximum Bandwidth Control: Minimum/Maximum Bandwidth Control Rate
  Priority Bandwidth Control: Low/Medium/High

• System Management
  Web-Based User Interface: D-Link Nuclias Cloud management platform
• Physical & Environment:
  Power Supply: 12V/2A
  Max. Power Consumption: 12.85 W
  Dimensions (L x W x H): 192 x 120 x 38 mm (excluding antennas)
  Operating Temperature: 0 - 40° C (32° F - 104° F)
  Storage Temperature:-20 - 70° C (-4° F - 158° F)
  Operating Humidity: 10 - 90% non-condensing
  MTBF: 645,765 Hours
  Safety: LVD, ErP
  EMI/EMC: FCC, CE, IC, VCCI, JATE, TELEC
