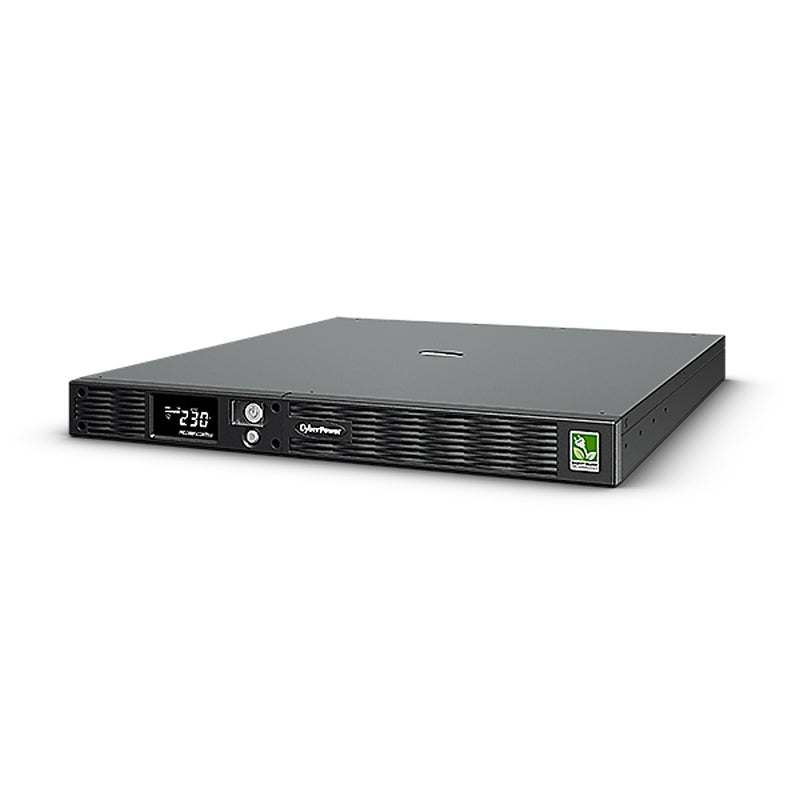

CP Pro 1000VA Rackmount Power Guardian

CP Pro 1000VA Rack UPS

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount | Tower
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS Bypass Technology
• Active PFC Compatibility: Yes
• Nominal Input Voltage ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
• Input Voltage Range ( Vac ): 160 - 286
• Adjustable Voltage Range ( Vac ): 150 - 300 Vac
• Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
• Input Frequency Detection: Auto-sensing
• Input Connector Type: IEC C14
• Detachable Power Cord Plug Type: AU x 1
• Power Cord Length: 3m
• Capacity (VA): 1000
• Capacity (Watts): 800
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 220 ± 5 % | 230 ± 5 % | 240 ± 5 %
• On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
• Power Factor: 0.8
• Automatic Voltage Regulation (AVR): Double Boost | Single Buck
• Overload Protection: Internal Current Limiting
• Outlet(s) - Total: 6
• Outlet Type: IEC C13 x 6
• Outlet(s) - Battery & Surge Protected: 6
• Outlet(s) - Critical Load (CL): 2
• Outlet(s) - Non-Critical Load (NCL): 4
• Typical Transfer Time ( ms ): 4
• Runtime at Half Load ( min ): 12
• Runtime at Full Load ( min ): 3.1
• Typical Recharge Time ( Hours ): 6
• Start On Battery: Yes
• User-replaceable: Yes
• Hot-swappable: Yes
• Battery Cartridge (RBP): RBP0027
• Battery Cartridge (RBP) Quantity ( pcs ): 1
• Surge Suppression ( Joules ): 810
• EMI/RFI Filtration: Yes
• LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning
• LCD Setting & Control: Alarm Setting | Input & Output | Battery Setting
• LED Indicators: Power On
• HID Compliant USB Port(s): 1
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode | Low Battery | Overload | Overcharge | Overheat
• Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | Serial Cable x1 | EPO Cable x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• PowerPanel Cloud Service: Yes - 90 Days Free Trial
• Enclosure Construction: Metal
• Rackmount Ears: Yes
• Dimensions: 430 x 44 x 490mm
• Weight: 18kg
• Installed Rack Height ( U ): 1
• Online Thermal Dissipation ( BTU/hr ): 72
• Certifications: CE | C-Tick | EAC | RoHS
• Warranty: 3 Years

Features:

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• Critical/Non-critical Load Outlets
• Surge and Spike Protection
• LCD Status Display
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
• Energy Saving Technology
• Pure Sine Wave Output
• Overload Protection
• Hot-swappable Batteries
• EMI and RFI Filtration
• USB Connectivity Port
• PowerPanel Management Software
• Rack/Tower Convertible Configurations

What's in the box?

• 1 x PR1000ELCDRT1U UPS
• 1 x Rackmount Ears
• 1 x Screw Kit
• 1 x Power Cord
• 1 x USB Cable
• 1 x Serial Cable
• 1 x EPO Cable
• 1 x User Manual
